SPECIFICATIONS

Brand Name: Huepar

Hign-concerned Chemical: None

Origin: Mainland China

Type: Line Lasers

is_customized: No

Model Number: S04CG-C+LR-8RG+TPD14+X6-LM120+AT-2

Certification: CE

Certification: EAC

Certification: FCC

Certification: RoHS

Is Smart Device: YES

Measurement Model: 16 Lines

Size: 37*13.8*29.5

Wavelength: 505nm-520nm

Precision: ±3mm/10m

Name: Huepar S04CG-C 4D Laser Level Set

Screen type: LCD screen with backlight

Laser Diode: Germany Osram

Leveling Time: 3s

Working Distance: 20m, 40m with detector

Working Time: About 5 hours with li-ion battery, About 0.5 hours with AA battery

Mount Size: 1/4"-20

Power Source: 7.4V / 2600mAh Li-ion battery & 4 x AA battery

Laser Beam: Green beam laser level

Laser Class: Class 2

Functions: With LCD Screen, Bluetooth, Remote Control

Type: Green Laser Tools

Huepar S04CG-C Set 4D 16 Lines Cross Line Laser Level LCD/Bluetooth/Remote Laser Tools With Detector Tripod Rangefinder Adapter

Huepar S04CG-C 16 Lines 4DGreen Laser Level Specifications:
Laser Class:	Class 2 (IEC/EN60825-1/2014), <1mW power output	Screen Type:	LCD screen with backlight
Laser Wavelength:	505nm-520nm	Laser Diode:	Germany Osram Green Beam
Horizontal/Vertical Accuracy:	±3mm/10m(±1/9 inch at 33Ft)	Reference Operating Time:	About 5 hours with li-ion battery, About 0.5 hours with AA battery
Leveling Time:	≤3s	Charging Port:	Type-C
Compensation Range:	3.5°±1°	Mount Size:	1/4"-20
Working Distance:	≥20m, ≥40m with detector	Operating Temperature:	Between -10℃and +50℃
Power Source:	7.4V/2600mAhLi-ion battery& 4 x AA battery	Storage temperature:	Between -20℃and +70℃
IP Rating:	IP54, waterproof, dustproof and shockproof, reliability and robustness
Warning: Avoid direct exposure of the laser beam to the eyes.The laser would be affected by strong sun light when work outside.

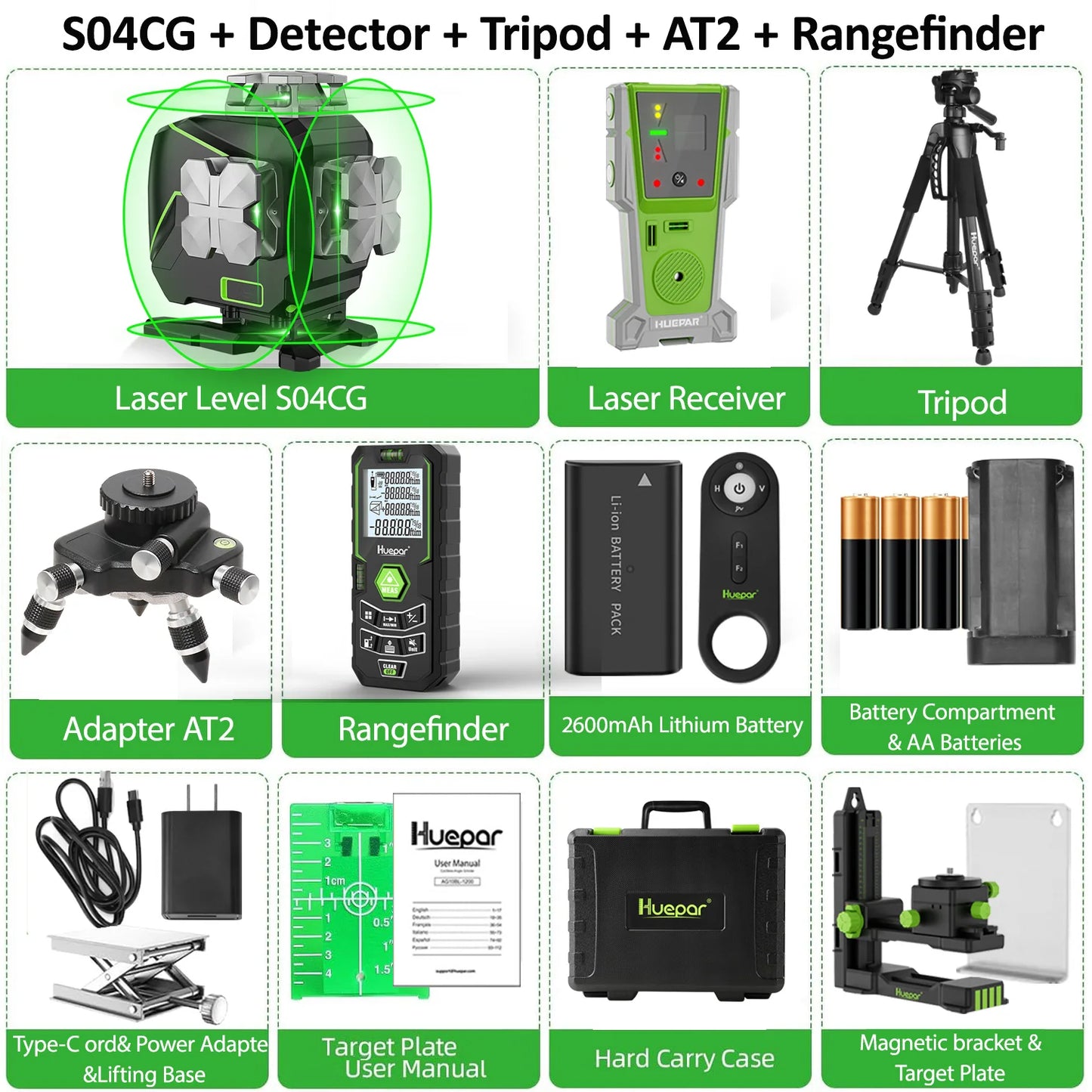

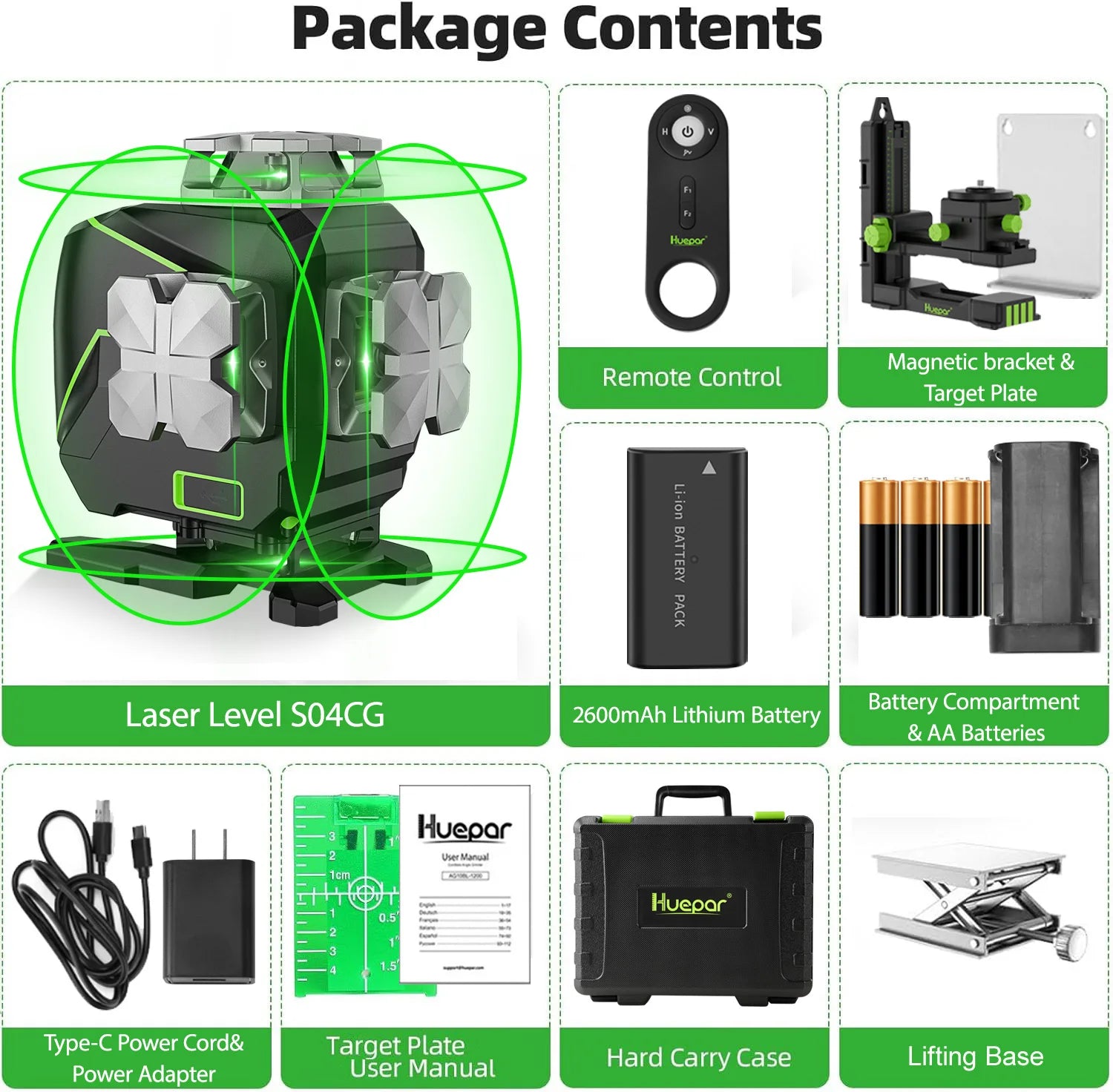

Package Contents - S04CG-C-SET-3 ( Main Photos): 1 x Huepar S04CG-C Green Laser Level 1 x Laser Receiver LR-8RG (or LR-5RG-GN or LR-6RG) 1 x Tripod TPD14 or (TPD14A or TPD16) 1 x 120M Rangefinder X6-LM120 ( or LM120A ) 1 x AT-2 Adapter 1 x Hard-shell Carry Case 1 x Wall Hanging Plate 1 x Green Target 1 x Multifunctional Wall Bracket 1 x 2600mAh Li-ion Battery 1 x Remote Control 1 x AA Battery Compartment 4 x AA battery ( AA battery is not included from China) 1 x Power Adapter 1 x Type-C Cord 1 x Lifting Base 1 x Multi-language manual

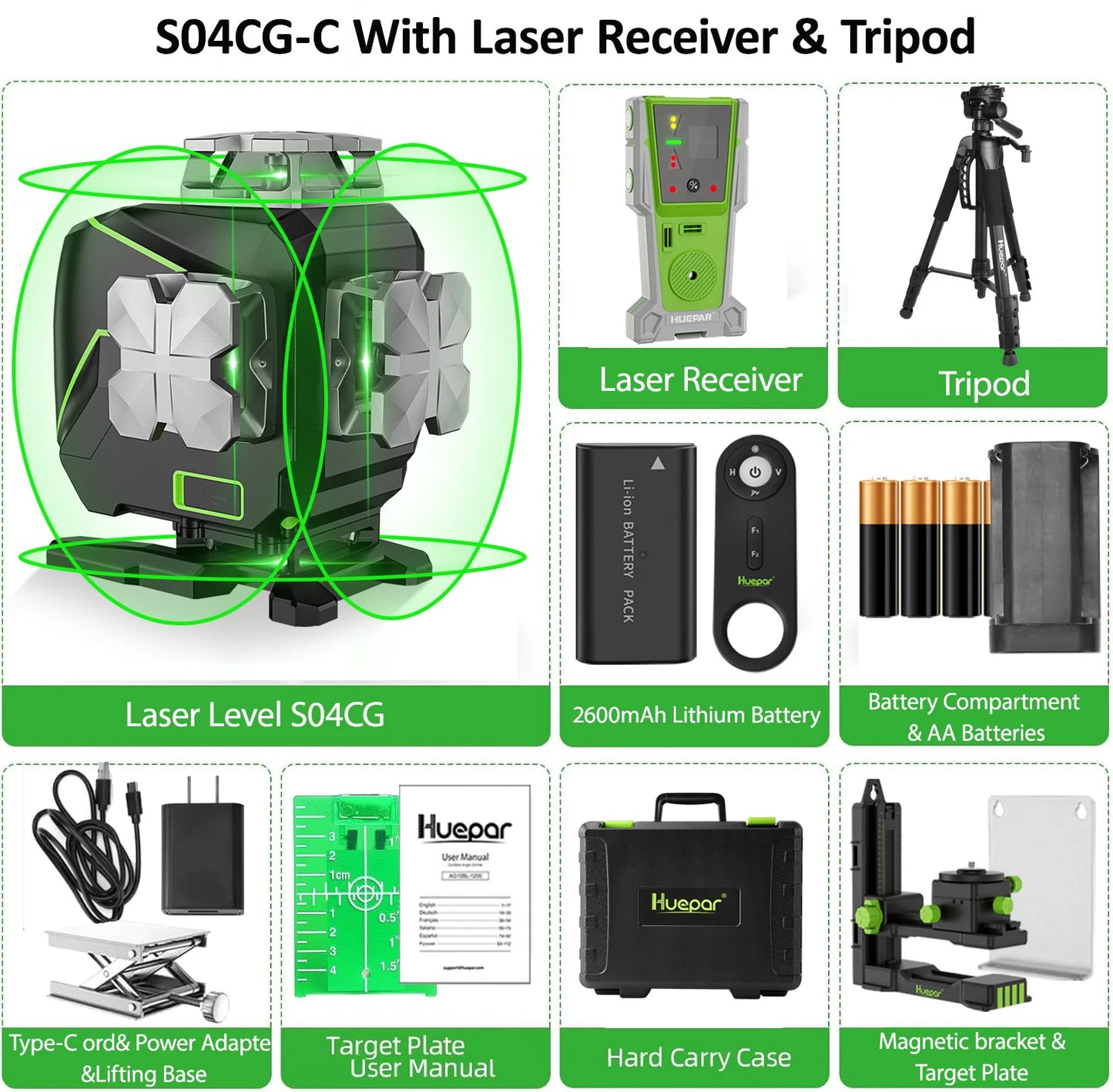

SET-1: S04CG-C - Basic Set		SET-2: S04CG-C+Receiver+Tripod
1 x Huepar S04CG-C Green Laser Level 1 x Hard-shell Carry Case 1 x Wall Hanging Plate 1 x Green Target 1 x Multifunctional Wall Bracket 1 x 2600mAh Li-ion Battery 1 x Remote Control 1 x AA Battery Compartment 4 x AA battery ( AA battery is not included if ships from China) 1 x Power Adapter 1 x Type-C Cord 1 x Lifting Base 1 x Multi-language manual		1 x Huepar S04CG-C Green Laser Level 1 x Laser Receiver LR-8RG (or LR-5RG-GN or LR-6RG) 1 x Tripod TPD14 or (TPD14A or TPD16) 1 x Hard-shell Carry Case 1 x Wall Hanging Plate 1 x Green Target 1 x Multifunctional Wall Bracket 1 x 2600mAh Li-ion Battery 1 x Remote Control 1 x AA Battery Compartment 4 x AA battery ( AA battery is not included if ships from China) 1 x Power Adapter 1 x Type-C Cord 1 x Lifting Base 1 x Multi-language manual

Line Switching:

• Short press H and V button on the keypad to switch the Horizontal and Vertical laser lines separately.
• The laser lines can be selected separately according to job requirements.

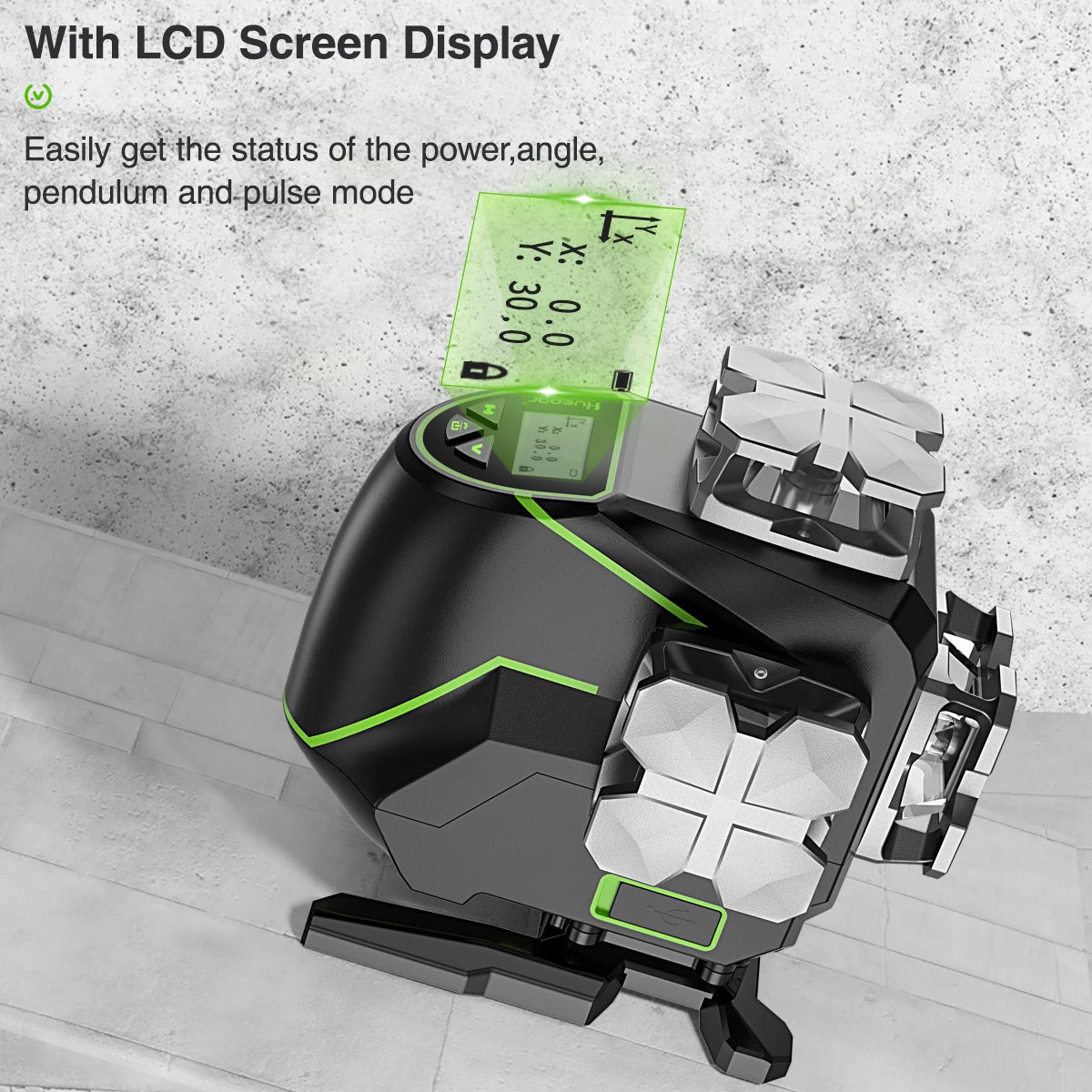

With LCD Display Screen:

• The laser level kit features LCD screen display.
• Users can easily get the status of the power, angle, pendulum and pulse mode on the display.

With Remote control:

• The remote control enables to Turn ON /OFF the laser lines and switch four 360° laser lines individually at a distance up to 33Ft.
• With the remote control, users can also turn on/off the pulse mode and adjust the line visibility.



Connected With Smart Bluetooth:

• Connect S04CG Laser Level with Free Huepar APP via Bluetooth Technology, users can control the laser tool by Mobile phone.
• The laser tool can connect two phones at the same time, whether on Android or iOS.
• The functions of the laser tool can be easily operated with the Bluetooth feature.

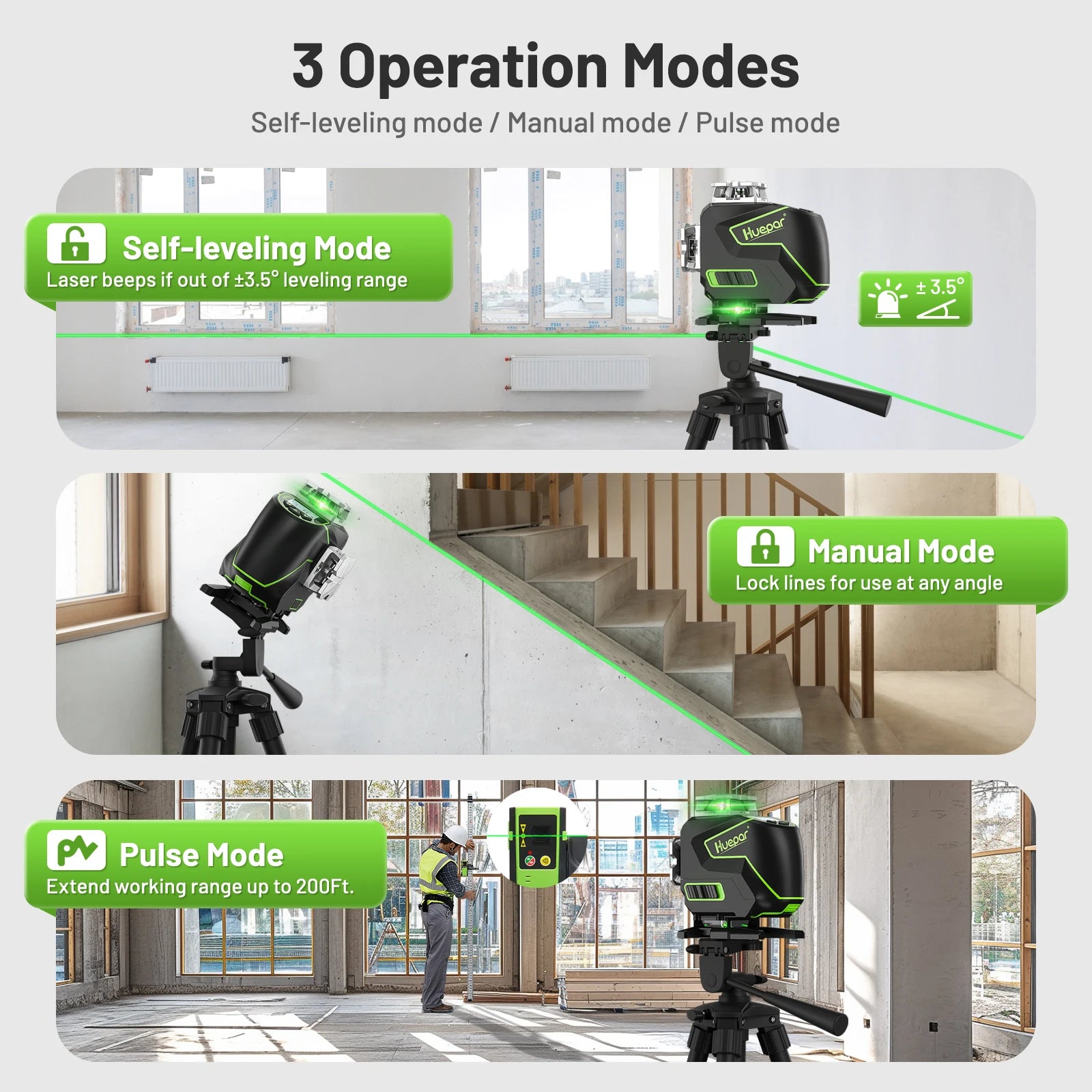

Self-leveling mode:

• Once the pendulum unlocked, self-leveling mode is enabled.
• The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.

Manual mode:

• When the pendulum locked, the laser tool can be placed for use at any angle.
• The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.

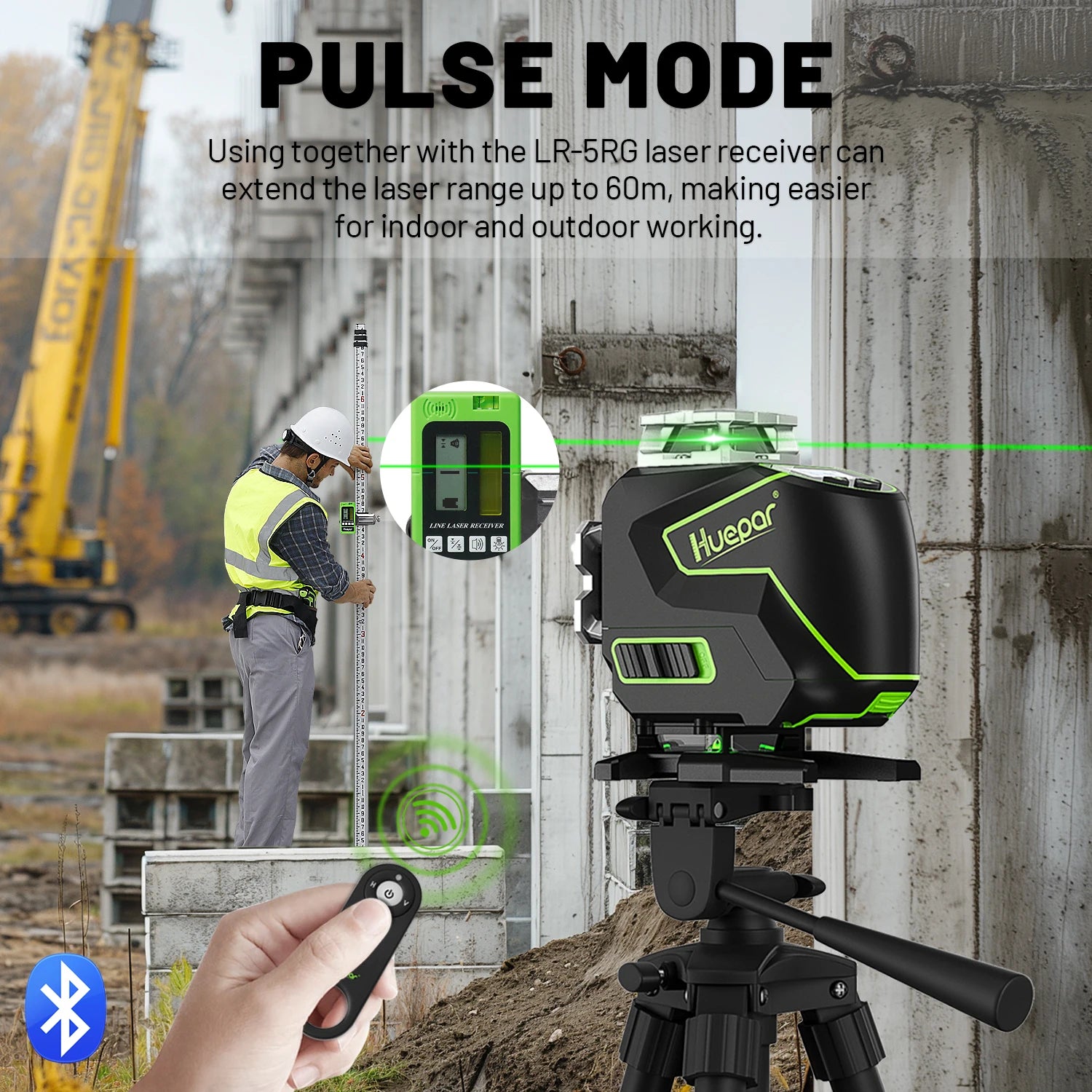

Pulse Mode:

• How to turn on the pulse mode? - Turn on the laser tool, short press power button to switch to Pulse Mode. The laser beams are dimmer in pulse mode.
• Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Receiver.
• It is compatible with Huepar LR-6RG&LR-5RG&LR-8RG Line Laser Receiver only.

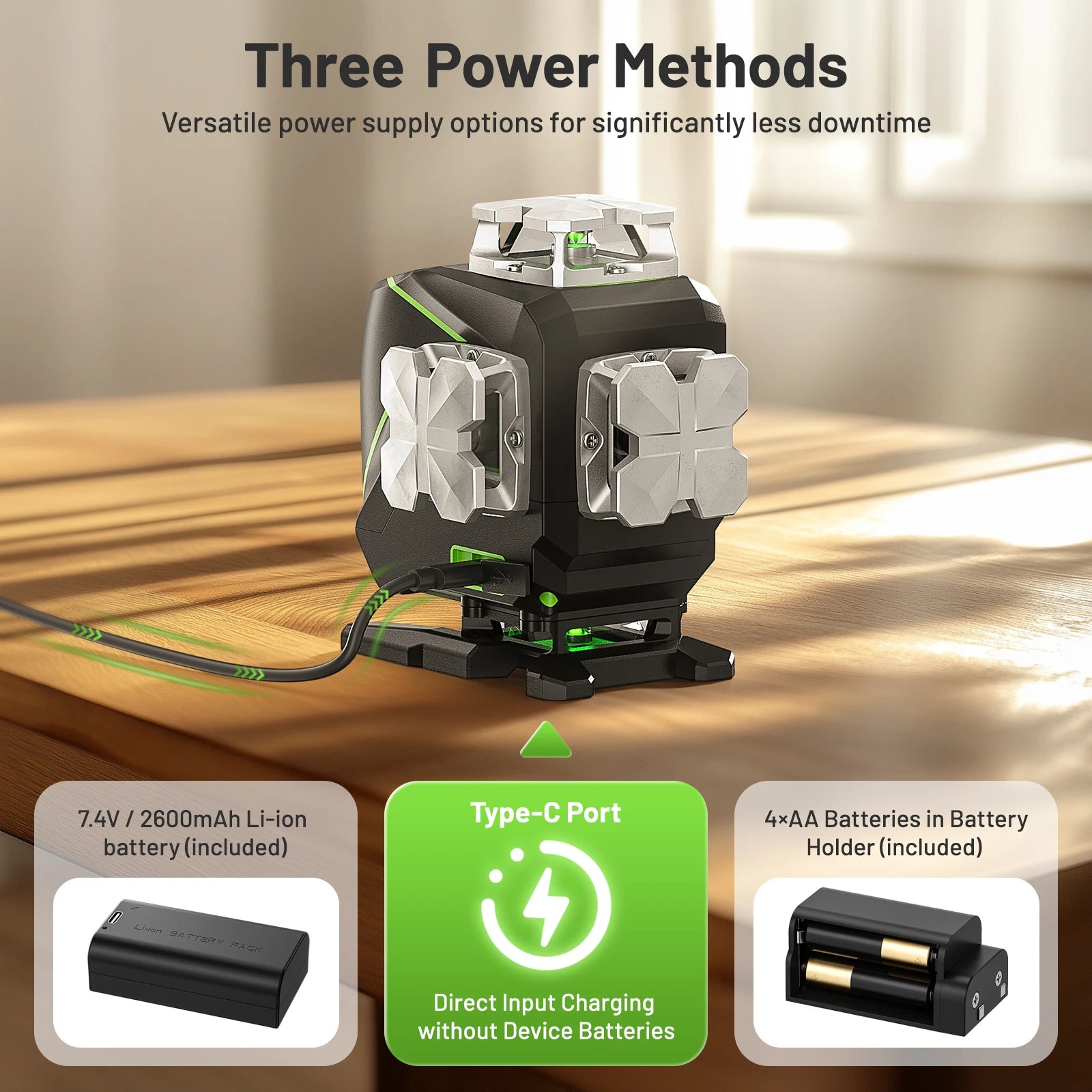

Diverse Power Supply:

• Large-capacity li-ion battery: 5 hours of extra-long working.
• AA battery: 4x AA battery for 0.5h usage.
• Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.
• Charging protection help prevent the tool from overcharge.

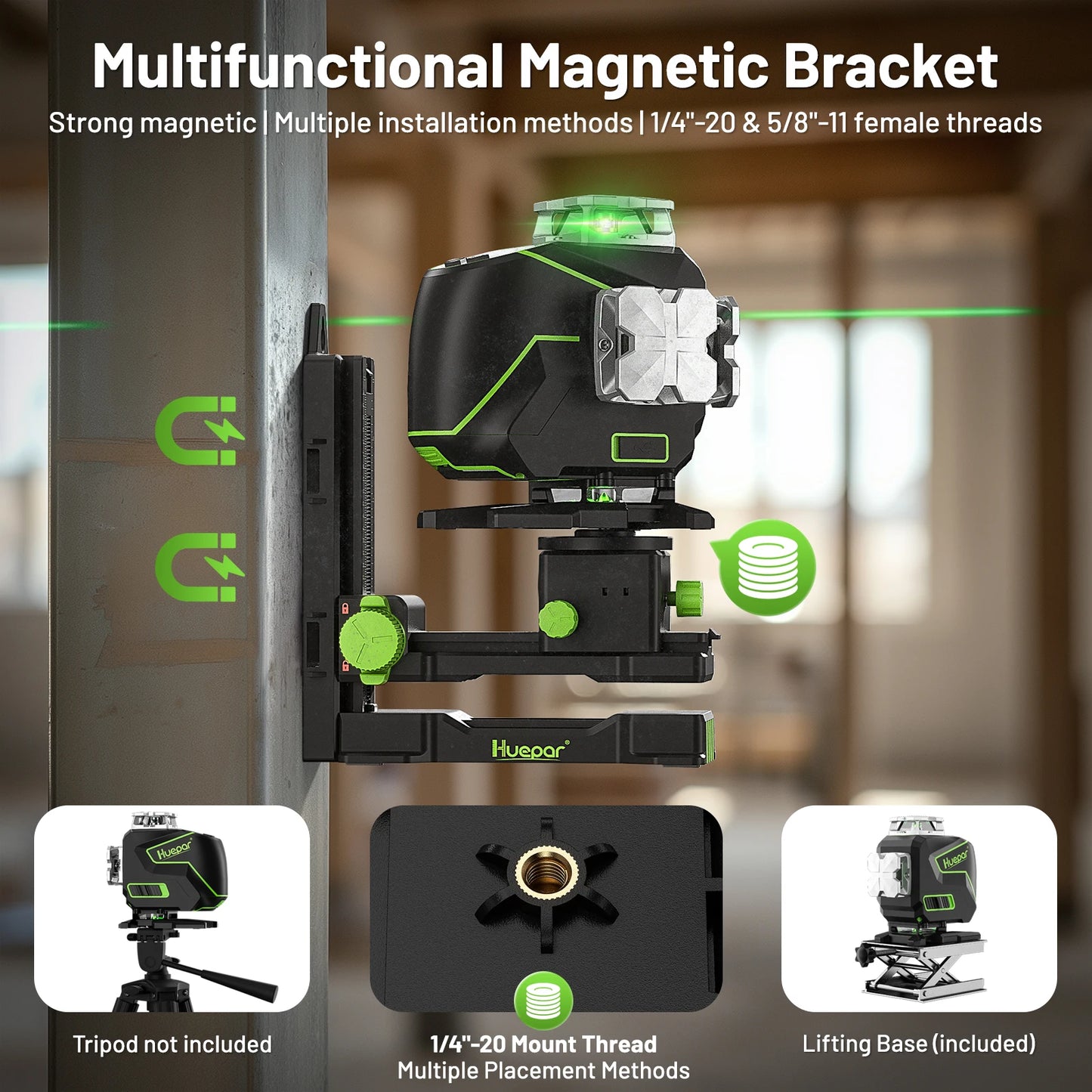

Multiple Installation Method:

• Strong Magnetic Pivoting Base: Allows for attachment to metal track and steel.
• Mount Size: 1/4"-20 mounting thread for temporarily fastening in place or being fixed on tripod.

360° Laser for Laying Wall / Floor Tiles:

• The Laser level can be suspended and hung on a wall bracket for laying wall tiles or ceilings.
• Closing to the floor at a minimum 5/8"
• With the lifting base, the laser lines raise from the surface to project over and travel past uneven surfaces or obstructions between 1 inch and 3.15 inch height.

Durable metal laser windows:

Withstands hazardous job site conditions. It can be removed and replaced.

Hard-shell carrying case:

Protect the laser tool from impact during transportation. It is allow for easy store and carry the laser tool and accessories.

Imported Germany Osram Diode:

The laser device uses for imported Germany Osram diode, improve the accuracy and extend the working distance than other brand diode.

Beep as a reminder:

Laser tool will beep as a reminder when it is out of self-leveling range ±3.5°.
