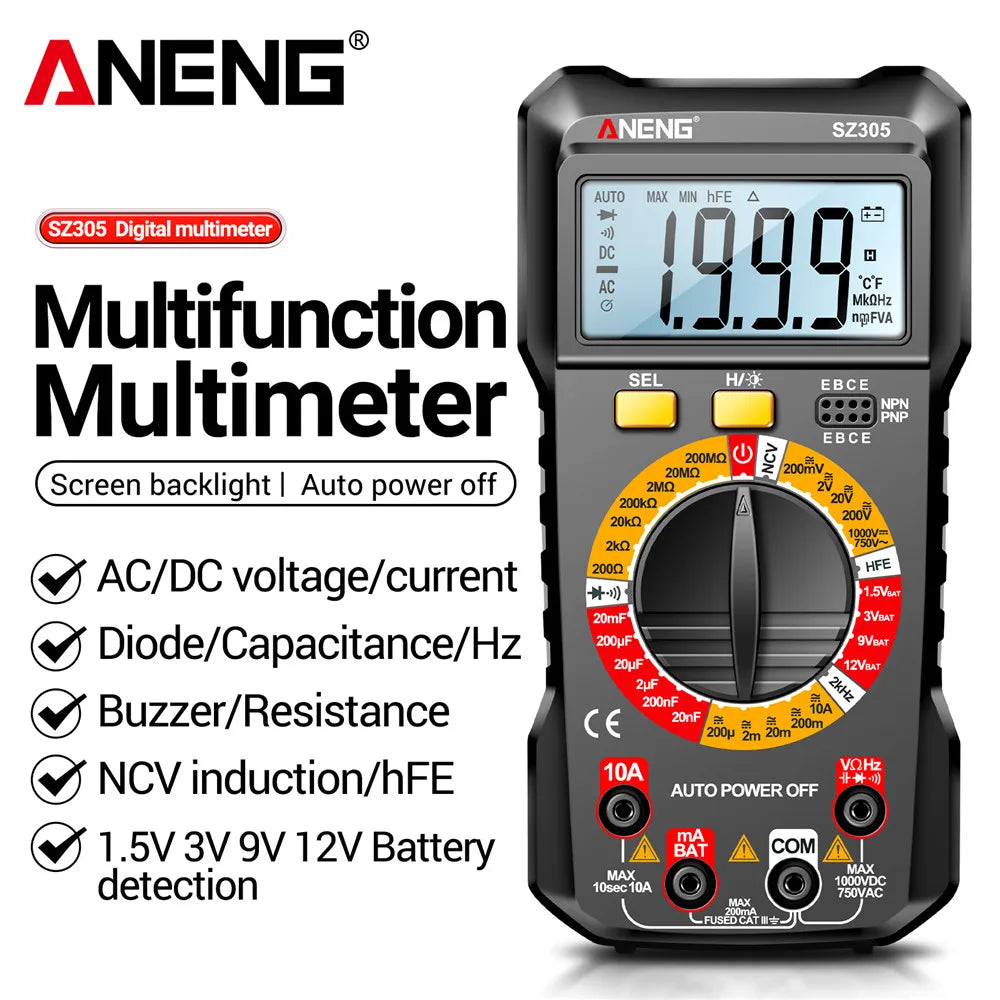

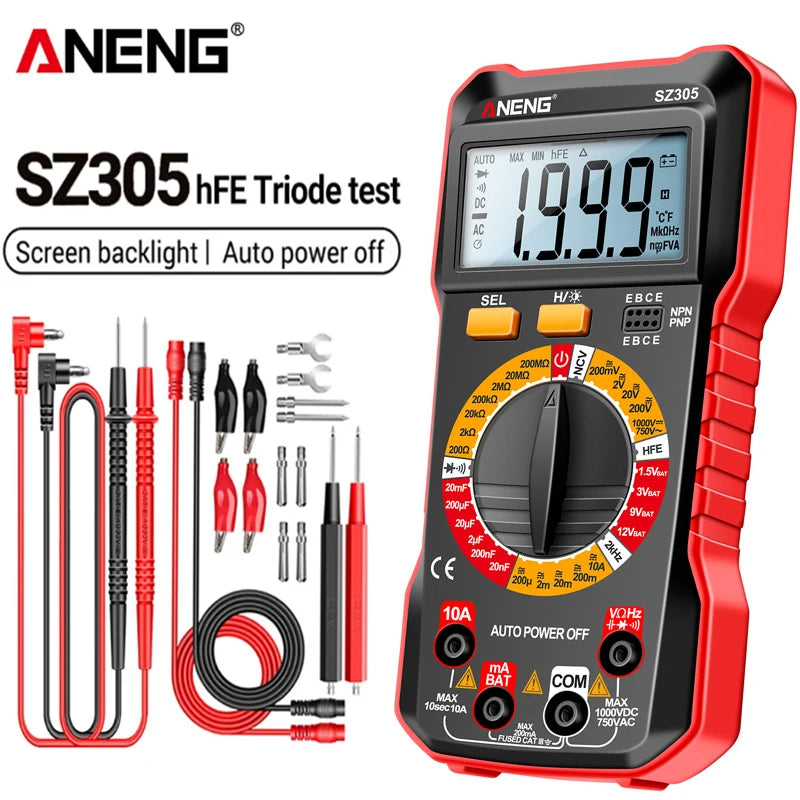

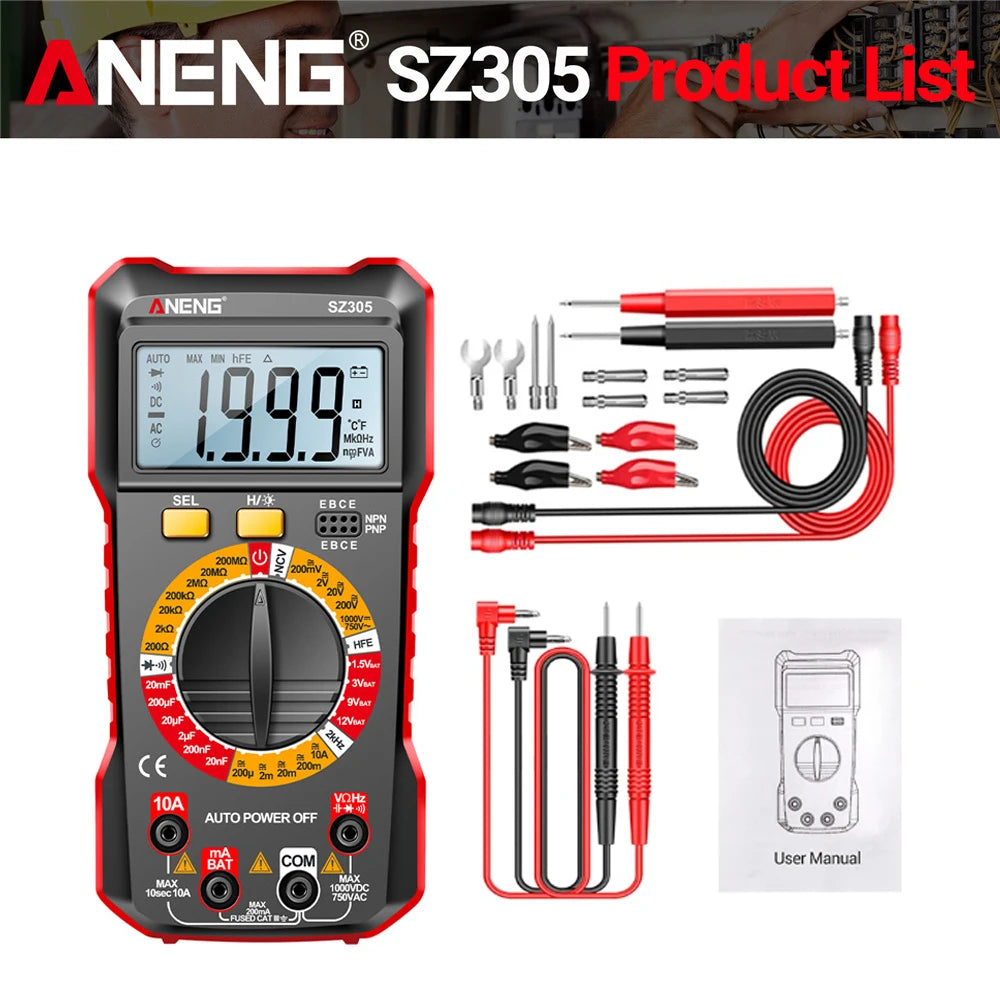

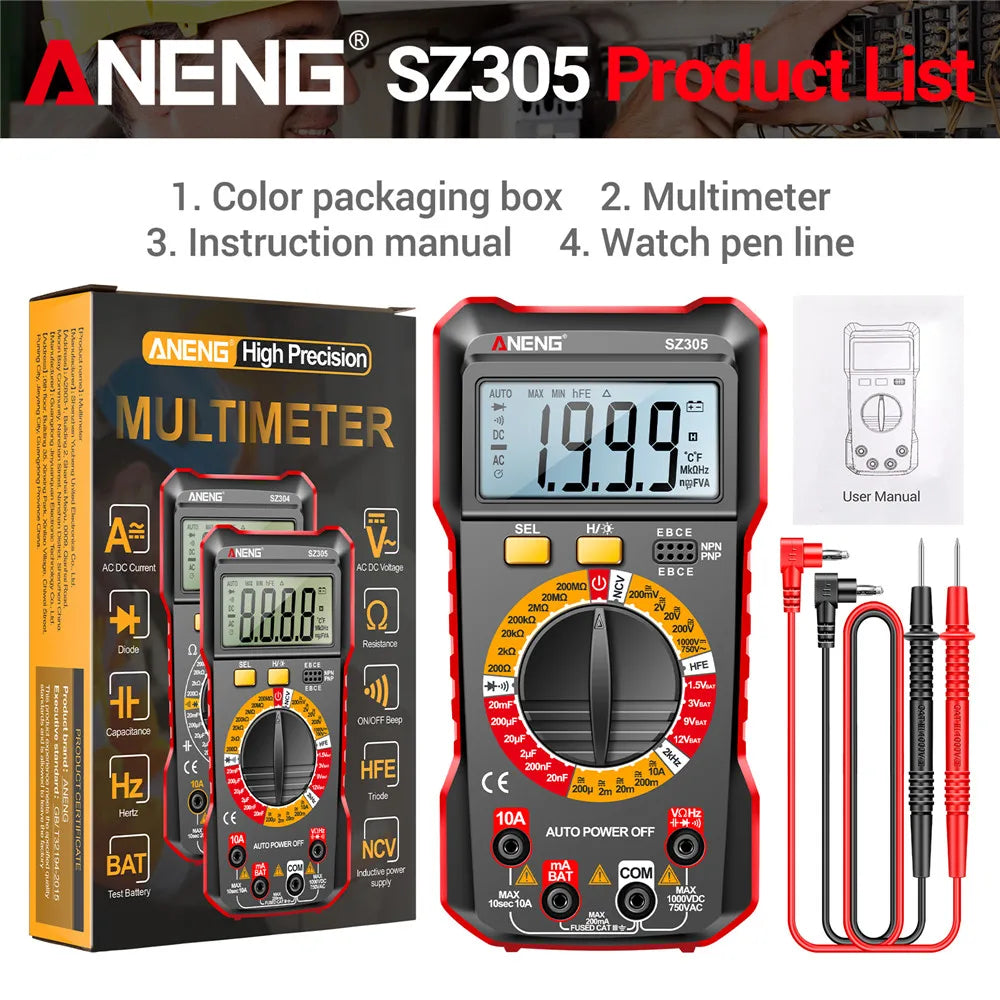

ANENG SZ305 1999 Count Professional Multimeter AC/DC Voltage Tester Ammeter Capacitor hFE Triode Hz Detector Electrician Tool
ANENG SZ305 1999 Count Professional Multimeter AC/DC Voltage Tester Ammeter Capacitor hFE Triode Hz Detector Electrician Tool
SPECIFICATIONS
Brand Name: ANENG
Origin: Mainland China
DIY Supplies: ELECTRICAL
AC Voltage: 200mV-750V
Display Type: Digital display
DC Voltage: 200mV-1000V
AC Current: 200uA-10A
Measuring Resistance Range: 200 MOhm
Certification: CE
DC Current: 200uA-10A
Measuring Capacitance Range: 20mF
Operating Mode: Auto/Manual Ranging
Model Number: ANENG SZ305 Multimeter
Measuring Inductance Range: ANENG Digital Multimeter
Dimensions: 188x91x38 mm
Operating Temperature: 0 - 40 ℃
Choice: yes

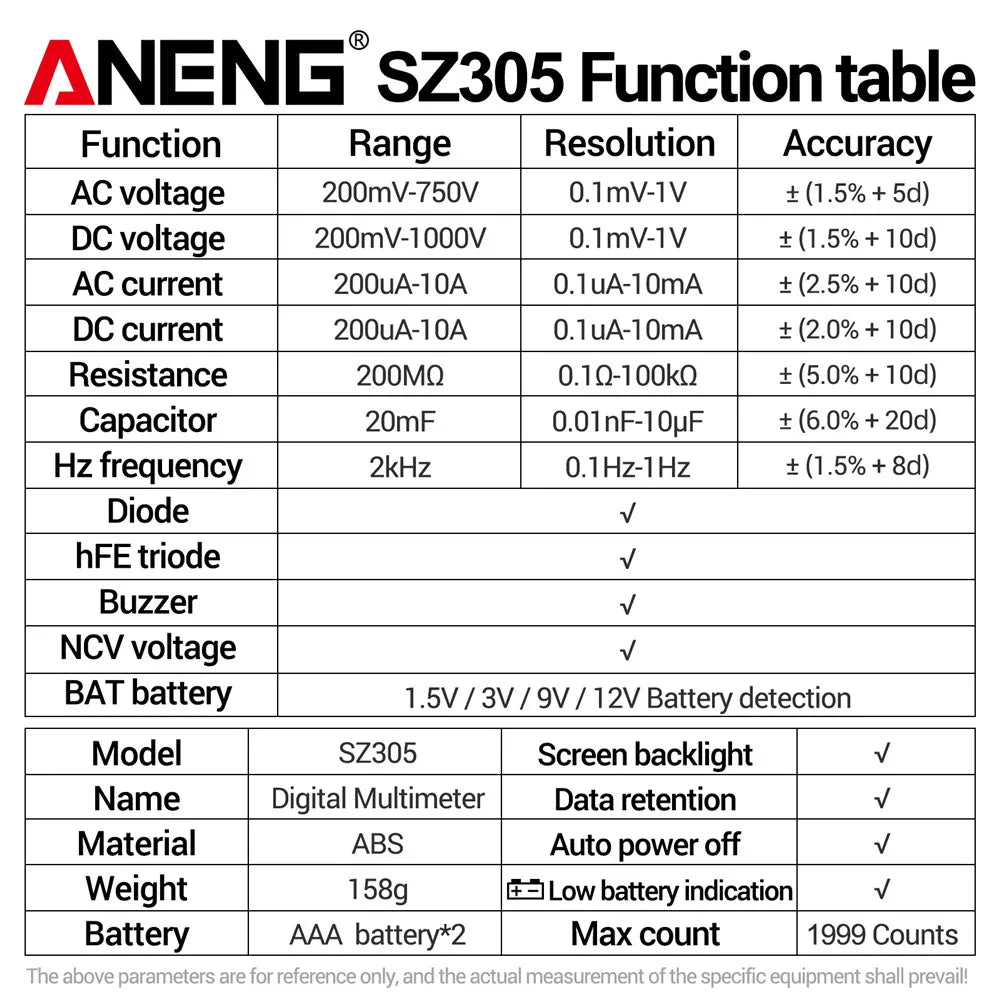

Describe :
Function |
Range |
Resolution |
Accuracy |
AC voltage |
200mV-750V |
0.1mV-1V |
±(1.5%+5d) |
DC voltage |
200mV-1000V |
0.1mV-1V |
±(1.5%+10d) |
AC current |
200uA-10A |
0.1uA-10mA |
±(2.5%+10d) |
DC current |
200uA-10A |
0.1uA-10mA |
±(2.0%+10d) |
Resistance |
200MΩ |
0.1Ω-100kΩ |
±(5.0%+ 10d) |
Capacitor |
20mF |
0.01nF-10uF |
±(6.0%+ 20d) |
Hz frequency |
2kHz |
0.1Hz-1Hz |
±(1.5%+8d) |
Specification |
188x91x38 mm |
Screen backlight |
√ |
Name |
Digital Multimeter |
Data retention |
√ |
Material |
ABS |
Auto power off |
√ |
Weight |
158g |
Low battery indication |
√ |
Battery |
AAA battery*2 |
Max count |
1999 Counts |
Diode |
√ |
||

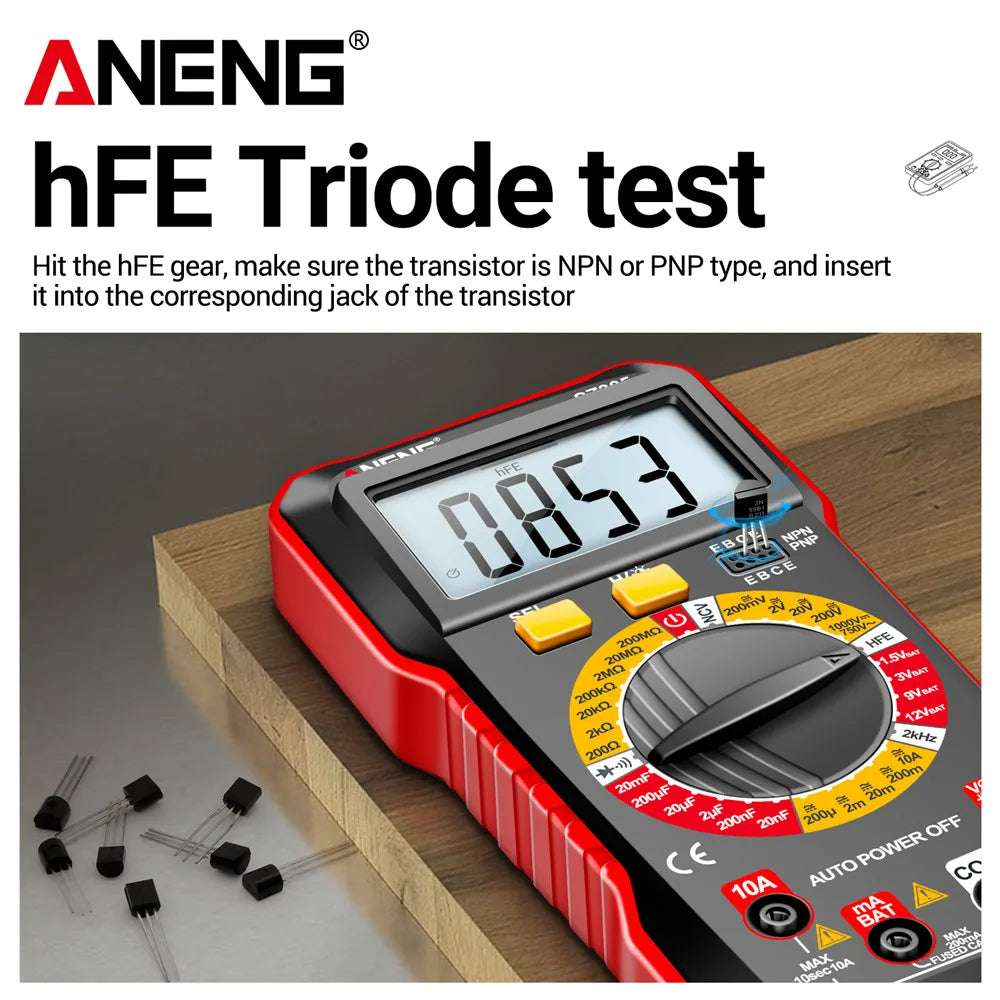

hFE triode |
√ |
||
Buzzer |
√ |
||
NCV voltage |
√ |
||
BAT battery |

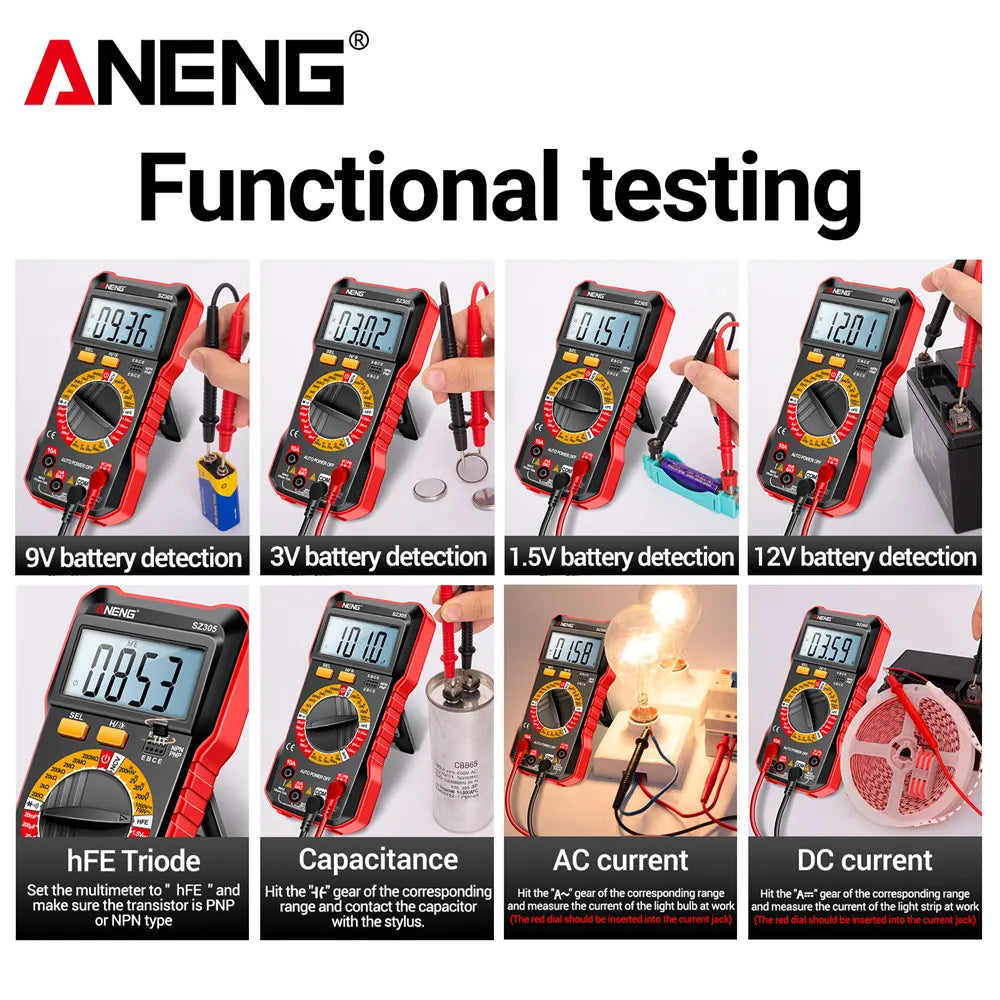

1.5V / 3V / 9V /12V Battery detection |
||
