9001E E-Series Battery Switch 32V 350A MARINE Battery Switch Selector 4 Position Terminal
9001E E-Series Battery Switch 32V 350A MARINE Battery Switch Selector 4 Position Terminal
SPECIFICATIONS
Power Mode: Room electrical/hard wiring
Operating Voltage: ≤36V
Battery Properties: Without Battery
Major Material: PC
Car Series: Other
Item ID: VG38892
Feature:
Ignition protected - Safe for installation aboard gasoline powered boats.
Case design allows surface or rear panel mounting.

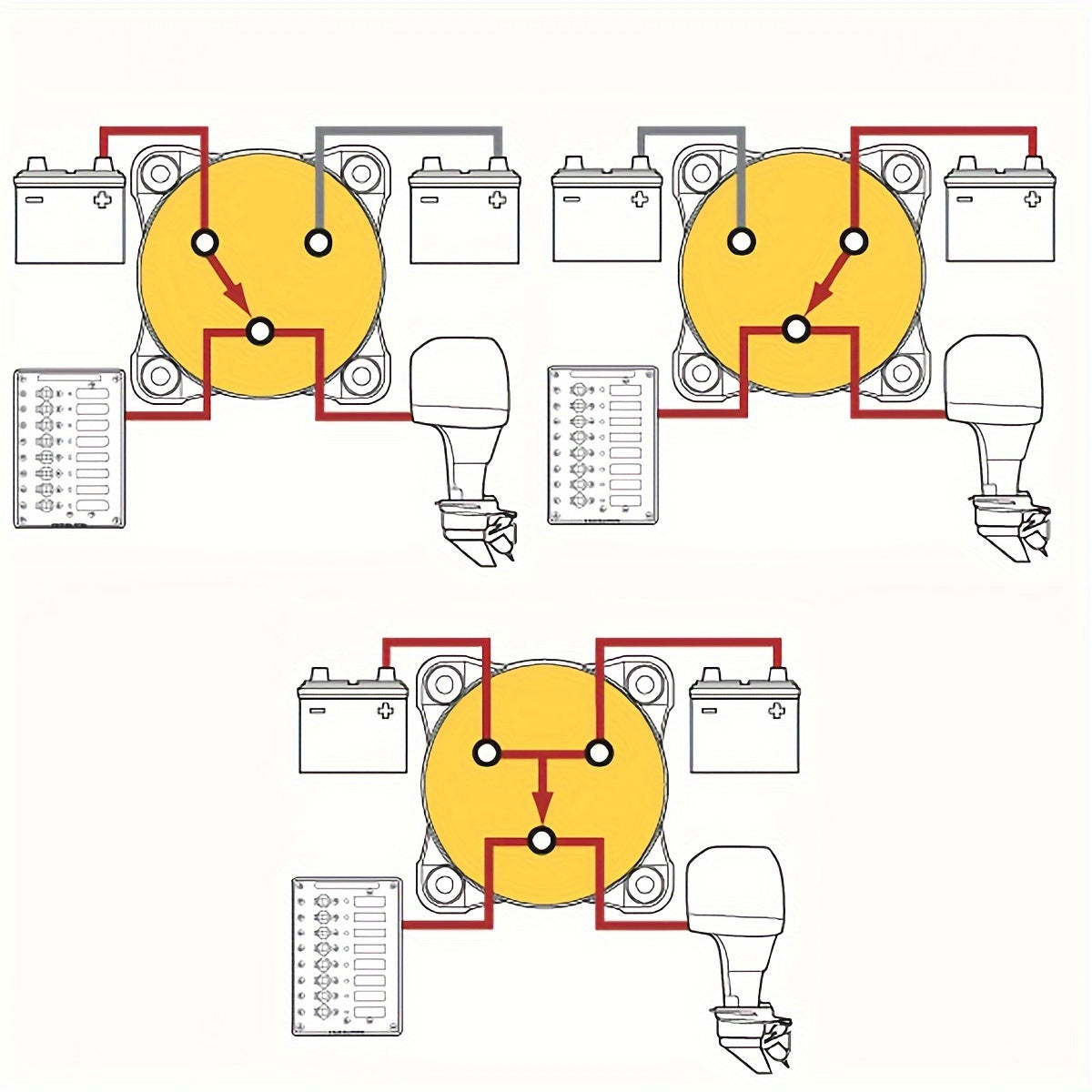

Switches isolated battery banks to all loads or combines battery banks to all loads.
3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals.
Make-before-break contact design allows switching between battery banks without power interruption.
Wide range of applications:
Small and exquisite appearance, can be used as the main power switch for motorhomes, yachts and construction machinery.

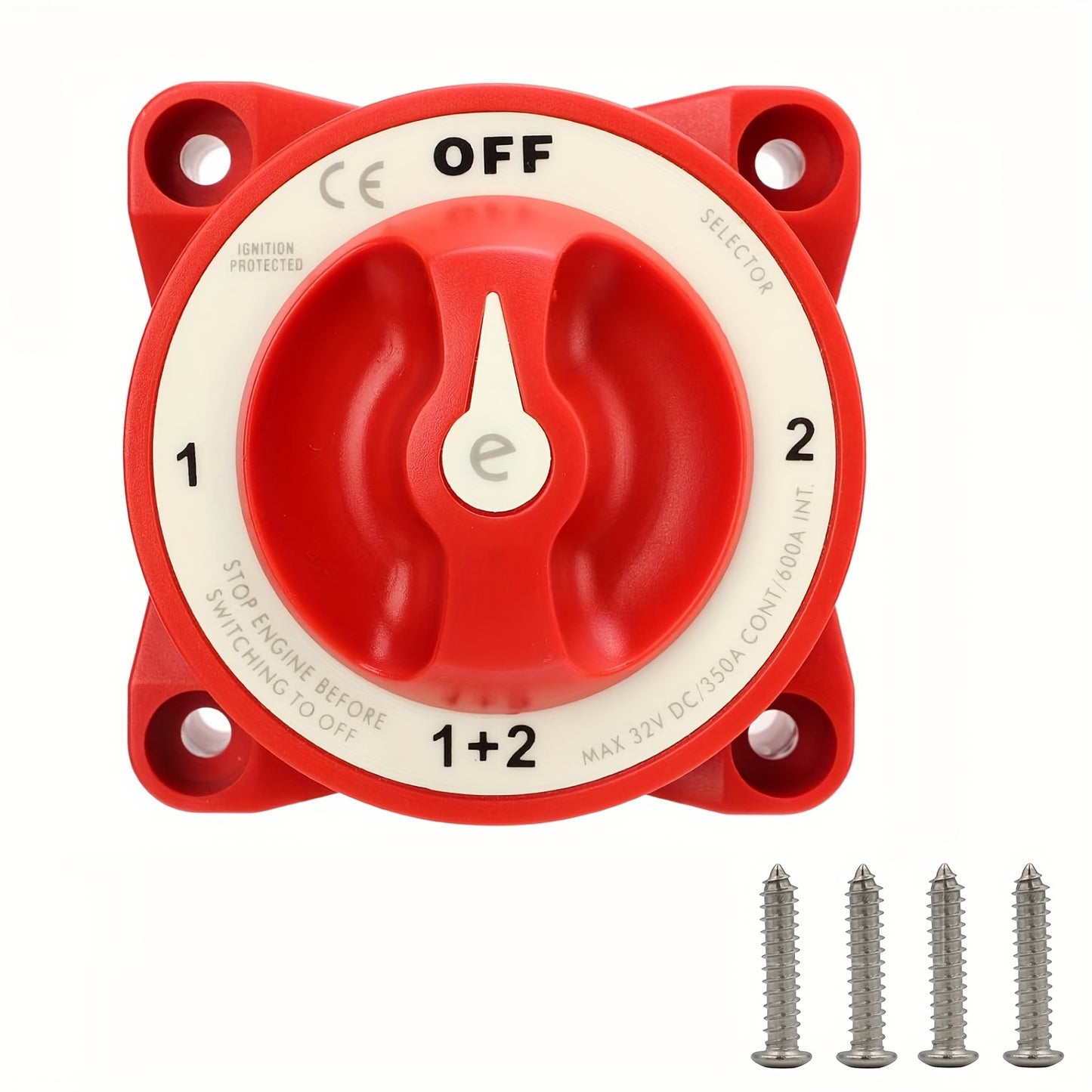

Package includes:
1 x Switch
4 x screw
Note:
1. The battery switch can be used as a standalone installation or connected with other switches
2. In the on/off state, the switch knob cannot be moved, and the switch state can be changed by turning it counterclockwise 45 degrees.
3. The movable 4-side insert and the back cover avoid short‑circuiting of the connecting terminals and make the switch comply with ABYC specifications

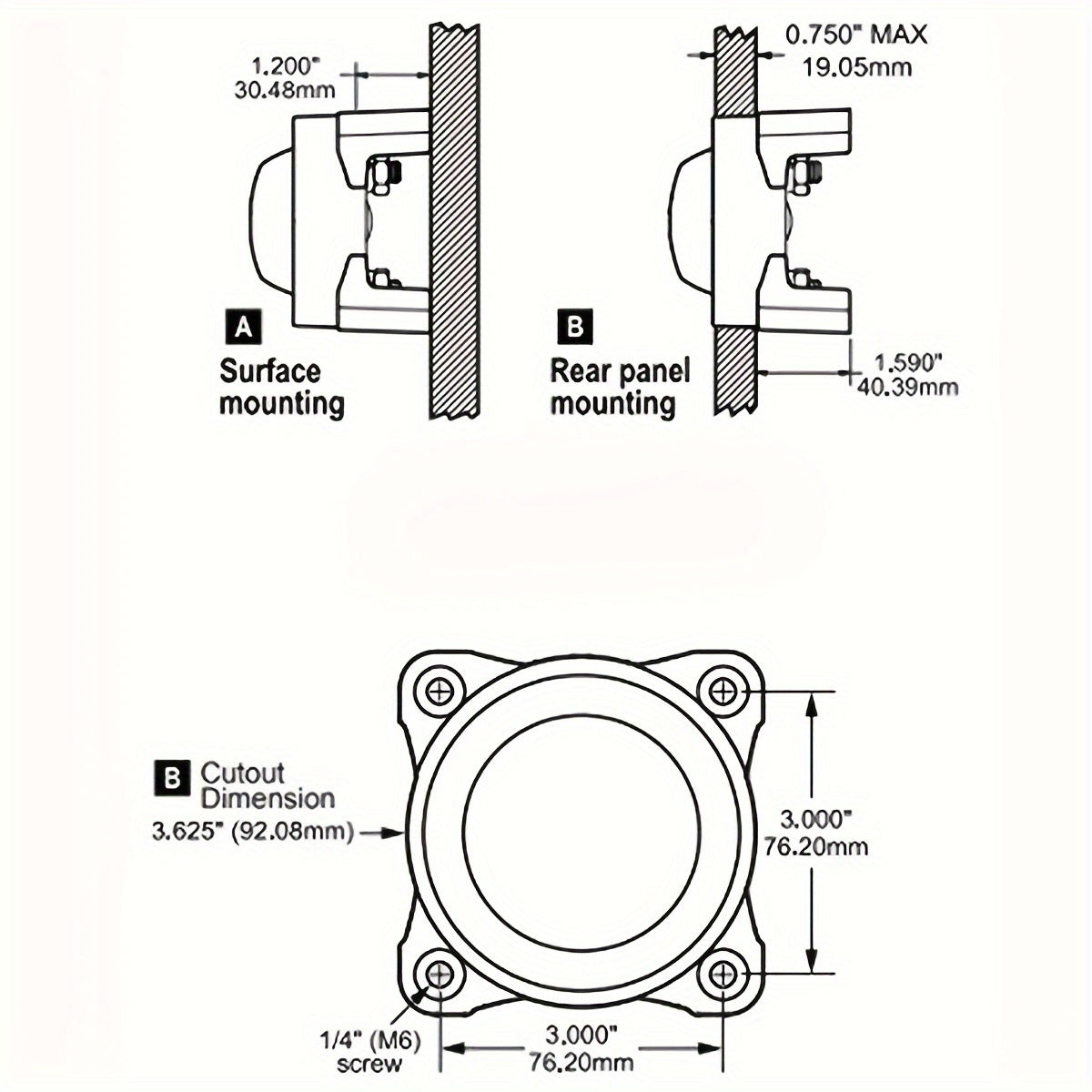

4. The switch can be installed on the surface or behind.
